Valve clearance photos, Pain in the backside!!

[Dmac]

Hi Lads,

Well I had the SP2 stripped down giving it a good check over, so I decided it would be a good idea to check the valve clearances early. I always like to check these things when I get a new to me bike.

Good thing I did too..

The procedure is well documented in the online manual (look in the links section) so I won't repeat it here, But here is what you will find inside.

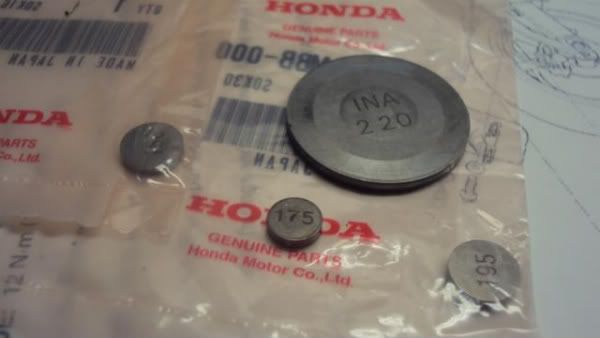

New SP shims in their packets, the big one is from a BMW 650, the little one is from a 20valve FZR 1000.
The markings on the shims indicate their thickness, i.e. 220 translates to 2.20mm. 175 = 1.75mm.
Something I didn't know is that a 188 shim is actually a 1.875 and a 183 would be 1.825 they round the numbers for .025 sizes.



Front cylinder access with right hand radiator and camshafts removed.

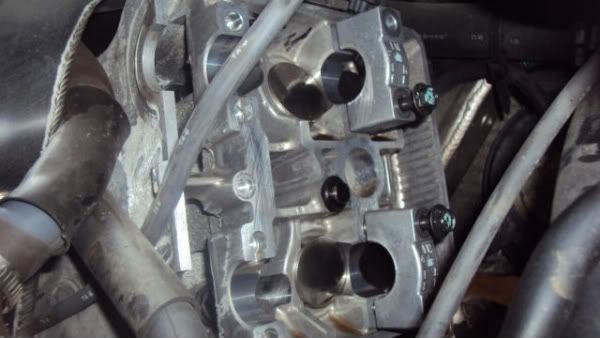

Front cylinder again with camshafts removed.


Camshafts hiding in a safe place.

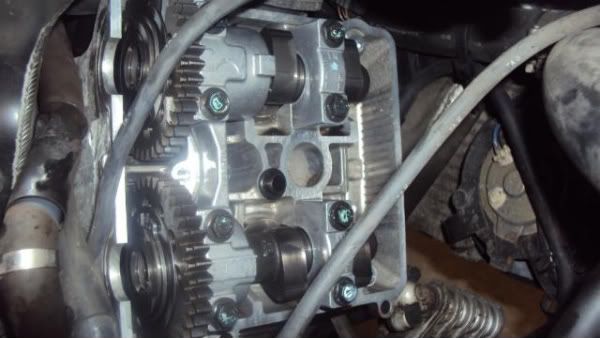

Front camshafts back in and timed up.

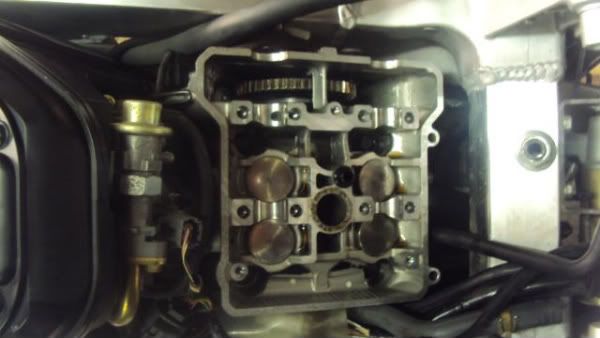

And then you have to do it all again for the rear cylinder, much better access. You can see the drive gear clearly in this pic.


So that's it.
It really is a job best done by someone else A pain in the arse. With the V twin It is like doing two engines at the same time.

6 of my clearances were slightly out of spec, on the tight side. I was able to swap two shims to different valves but had to get 4 new ones.
They are all now spot on. so it was worth it.

My advice to anyone thinking of doing it yourself, would be to make sure you are fairly experienced doing valve clearances. It's not that it's much different to other bikes but it is a fairly long job and very easy to muck something up.
It all went smothly apart from the Honda dealer taking two weeks to get the shims (not Dave Silver, I should have ordered from him). It can test your good will to all men attitude

It is back running now but the bodywork can wait until tomorrow, I need a stiff drink
